Advanced Micro Bubble Technology for Sustainable Solutions
Regular pumps don’t like to pump air, but our unique Bubble Generator is specifically designed to do exactly that. Effectively functioning as a pump with an inbuilt compressor, the KTM Micro Bubble Generator is substantially more compact and less vulnerable to breakdowns than traditional two-part systems.
Whether you are looking to improve water quality in large purification plants, remove chemicals in heavy industry, or optimize aquaculture and agriculture operations, our micro bubble technology offers an effective and environmentally friendly solution.
Generators
Nikuni produces micro-bubble pump systems for water treatment and mixing.
VDF
Advanced filtration solutions for industrial and water treatment.
Trial unit
For reliable performance verification in industrial applications.
Distributors
Find here our European Distributors
Rotary Industry
European Distributor of Nikuni and specialist in rotating equipment

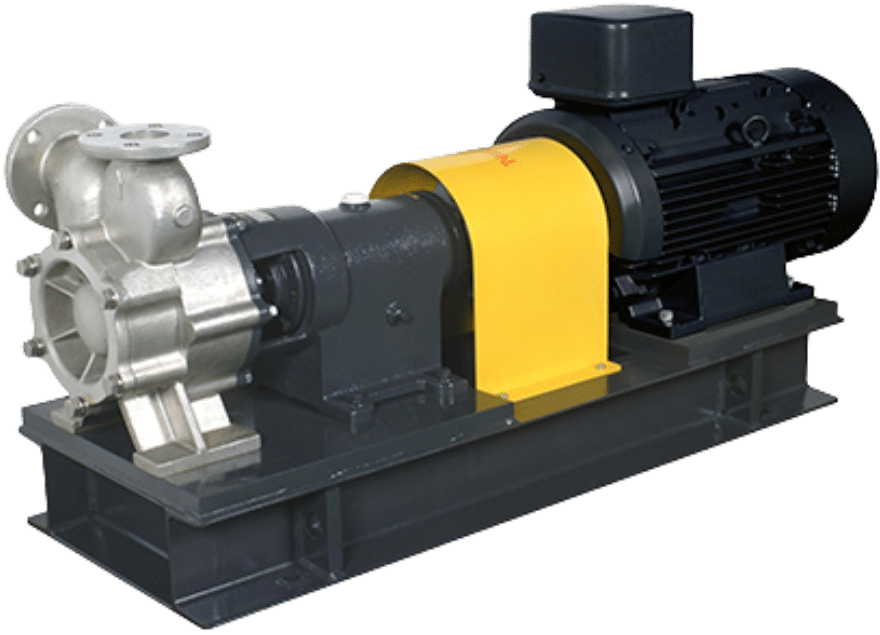

The KTM Bubble Generator
The unique and compact Micro-Bubble Generator that creates pressurized air-enriched whitewater with highly reliable performance, insuring excellent stability in processes and systems such as DAF units in water treatment plants.
- For removing impurities from wellwater in preparation for various industries
- For pretreatment of kitchen waste water
- For excrement (of livestock) treatment after rough seperation by vibratory screen
- For recycling of high-grade paper fiber
- For food, crystal and chemical removal
- For removing sediments, sludge and algae for pond/lake purification
- For a micro bubbled bath
- For using the watersurface as an image for events
- For decorating a pool’s watersurface
Multiple Usage

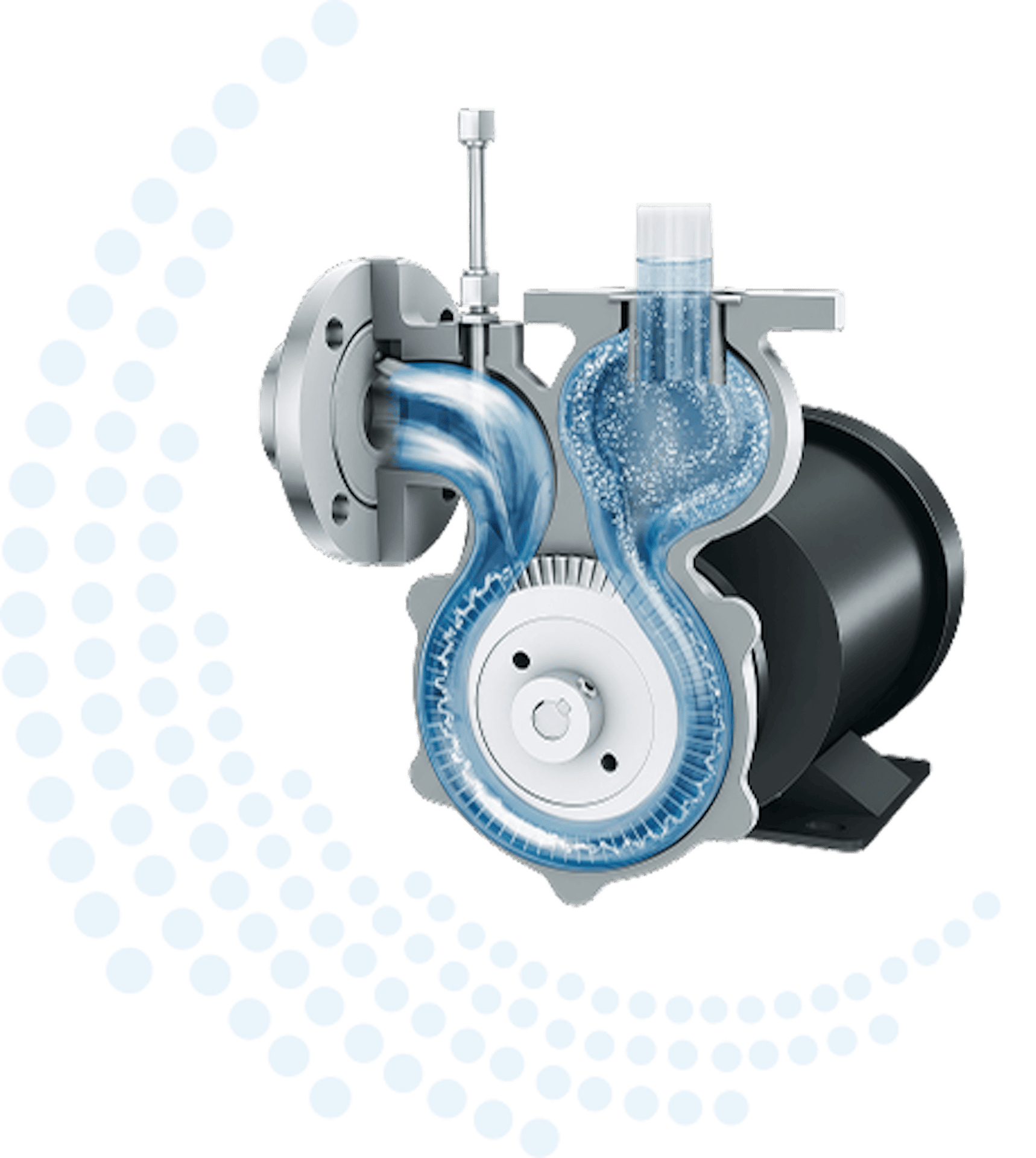

The micro/nano bubble generator is using a simple method to solve micro bubbles in a liquid. This bubble generator uses the properties of the vortex pump turbine and effectively solves gas with a liquid or two liquids, and adding it under pressure into a process. A device that can be useful for efficient mixing and dissolving of the gaseous products in fluids. It is for this purpose equipped with a special impeller and can be used for continuous operation.
For various industries
The KTM Micro Bubble Generator is used in a multitude of sectors globally, harnessing the power of extremely small bubbles that remain suspended in liquids to enhance gas exchange. For example:
- Water Purification & Wastewater Treatment:
Contaminants bond with the air bubbles, floating to the surface for easy removal. This increases treatment capacity while lowering energy demand. - Heavy Industry & Manufacturing:
Highly effective for removing chemicals, sediment, and algae. Used in metal parts manufacturing, tire manufacturing, and parts washing processes. - Agriculture & Aquaculture:
Improves water quality, boosts nutrient absorption in roots, and enhances fish welfare by maintaining stable oxygen levels. - Desalination:
Proven performance in remote osmosis capabilities all around the globe.
Oem
Agriculture
Fish farm
Industry
Wastewater
Brewery
Our products
KTM 80 F1/D1-000
- Capacity: 42 m3/h
- Air Intake: 3.36 Nm3/h
- Engine Power: 22 kW
- DAF Capacity: 140 - 210 m3/h
KTM 65 F2/S2-000
- Capacity: 20 m3/h
- Air Intake: 1.6 Nm3/h
- Engine Power: 15 kW
- DAF Capacity: 67 - 100 m3/h
KTM 50 F3/S3-000
- Capacity: 15 m3/h
- Air Intake: 1.2 Nm3/h
- Engine Power: 11 kW
- DAF Capacity: 50 - 75 m3/h
KTM 50 F2/S2-000
- Capacity: 12 m3/h
- Air Intake: 0.96 Nm3/h
- Engine Power: 7.7 kW
- DAF Capacity: 40 - 60 m3/h
KTM 50 F1/S1-000
- Capacity: 8 m3/h
- Air Intake: 0.64 Nm3/h
- Engine Power: 5.5 kW
- DAF Capacity: 26 - 40 m3/h
KTM 40 F/N-000
- Capacity: 4.8 m3/h
- Air Intake: 0.38 Nm3/h
- Engine Power: 3.7 kW
- DAF Capacity: 16 - 24 m3/h
KTM 32 F/N-000
- Capacity: 3 m3/h
- Air Intake: 0.24 Nm3/h
- Engine Power: 2.2 kW
- DAF Capacity: 9 - 15 m3/h
KTM 25 F/N-000
- Capacity: 1.5 m3/h
- Air Intake: 0.12 Nm3/h
- Engine Power: 1.5 kW
- DAF Capacity: 4.5 - 7.5 m3/h
KTM 20 F/N-000
- Capacity: 1 m3/h
- Air Intake: 0.08 Nm3/h
- Engine Power: 0.75 kW
- DAF Capacity: max 5 m3/h
